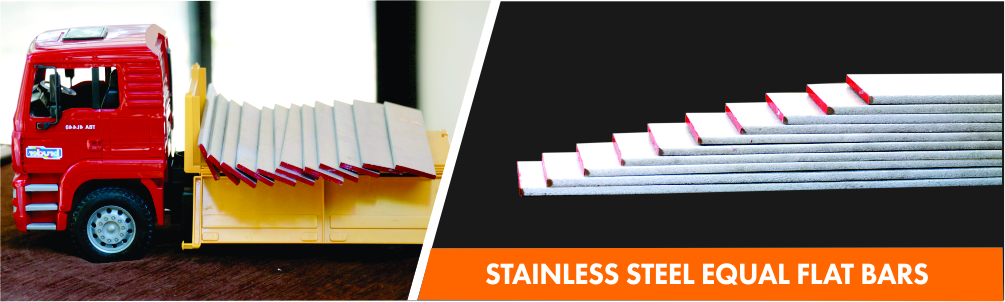

Stainless Steel Equal Flat Bars
| Size (mm) |
Size (Inch) |
Thickness (mm) |
Thickness (Inches) |
| 25MM |
1” |
5mm to 15mm |
3/16ʺ - 3/5ʺ |
| 30MM |
1-3/16” |
5mm to 15mm |
3/16ʺ - 3/5ʺ |
| 32MM |
1-1/4” |
5mm to 15mm |
3/16ʺ - 3/5ʺ |
| 35MM |
1-3/8” |
5mm to 15mm |
3/16ʺ - 3/5ʺ |
| 40MM |
1-4/7” |
5mm to 15mm |
3/16ʺ - 3/5ʺ |
| 45MM |
1-7/9” |
5mm to 15mm |
3/16ʺ - 3/5ʺ |
| 50MM |
2” |
5mm to 20mm |
3/16ʺ - 4/5ʺ |
| 55MM |
2-1/16” |
5mm to 20mm |
3/16ʺ - 4/5ʺ |
| 60MM |
2-3/8” |
5mm to 20mm |
3/16ʺ - 4/5ʺ |
| 63MM |
2-1/2” |
5mm to 20mm |
3/16ʺ - 4/5ʺ |
| 65MM |
2-1/2ʺ |
5mm to 20mm |
3/16ʺ - 4/5ʺ |
| 70MM |
2-3/4ʺ |
8mm to 20mm |
5/16ʺ - 4/5ʺ |
| 75MM |
3” |
8mm to 20mm |
5/16ʺ - 4/5ʺ |
| 80MM |
3-1/8” |
8mm to 20mm |
5/16ʺ - 4/5ʺ |
| 90MM |
3-1/2” |
8mm to 20mm |
5/16ʺ - 4/5ʺ |
| 100MM |
4” |
8mm to 20mm |
5/16ʺ - 4/5ʺ |
Supply Condition
- Finish : Hot Rolled Annealed & Pickled (HRAP FINISH)
- Length : 3 to 6 Meters / 12 to 20 feet
- End Finish : Both ends are marked with Special Colors.
- Size tolerance : ASTM A276/484 / DIN 1028
- Packing : Bars are packed in 1000 to 1300 kgs bundles in waterproof HDPE cloths, Standard Export Seaworthy, Marking of Sizes, Grade, Net Wt, Gross Wt, No of pieces, POD, Origin etc…. MenƟoned on Each bundles
- Marking : Size, Grade, Length, Heat No, Manufacture name on each pieces .
- Features : Corrosion resistance, Durable, Very sturdy, Easy to install, Fire and heat resistance, Rust free, Abrasion free
